Datos del producto:
Pago y Envío Términos:
|
| Dimensión: | 2550*1650*1600 MILÍMETRO | El peso total: | 1200 Kg |
|---|---|---|---|
| Anchura de la longitud del PWB: | 1200*350 máximo milímetro | Velocidad del montaje: | 30000 CPH |
| Fuente de alimentación: | CA 220 50 HERZIOS | ||
| Alta luz: | smd assembly machine,smd pick and place machine |
||

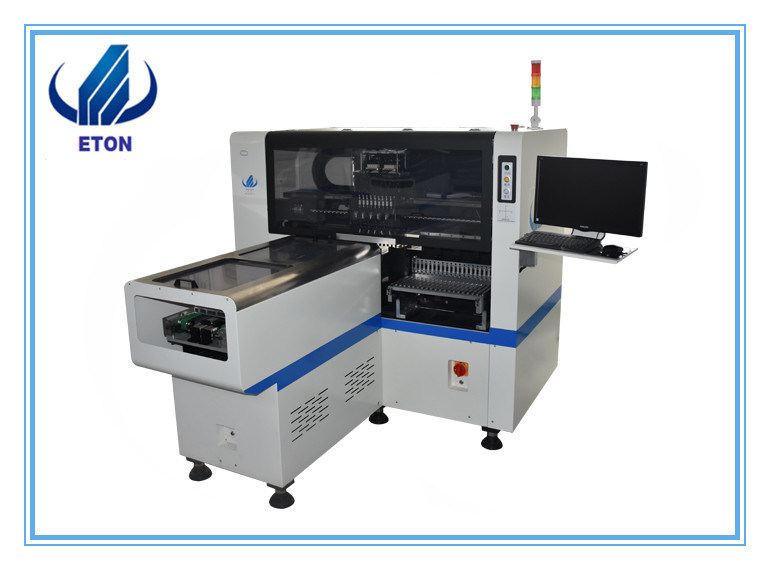

Multi-functional SMT Machine,Create the lowest-cost patch plan
Single module multi-functional mounter.
Mounting parts: LED,capacitors,resistors,IC,shaped components,etc.
Applicable to vibration feeding system for lens.
Apply to tube, driver, bulb, strip, lamp, panel, ceiling light, down light, screen display, street light etc.
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, MARK correction
Auto-optimization feature after coordinates generated, etc.
Create the lowest-cost patch solution for better cooperation with you
| PCB Length Width | Max.:1200mm*350mm Min.:50mm*50mm |
| PCB Thickness | 0.5~5mm |
| PCB Clamping | Adjustable Pressure Pneumatic |
| Mounting Mode | Group picking and placing separately, taking separately and placing separately |
| System | Windows 7 |
| Software | R&D independently |
| Display | LED Monitor |
| Input Device | Keyboard, Mouse |
| No. of Camera | 2 sets of imported camera/Vision for the flight identification + Mark correction |
| Repeat mounting Precision | ±0.02mm |
| Mounting Height | <15mm |
| Mounting Speed | 30000CPH |
| Components | LED,IC, capacitors, resistors, shaped components etc. |
| Components Space | 0.2mm |
| No. of Feeders | 1*20PCS |
| No. of nozzles | Single module, totally 8 |
| Power | 220AC 50HZ |
| Power Consumption | 4KW |
| Operating Environment | 23℃±3℃ |
| Conveyor Transmission | Max Length:1.2m |
| Transmission Speed | >500mm/sec. |
| Transmission Direction | single (left→right or right→left) |
| Transmission Mode | Online |
| Position Mode | Optical |
| Air Pressure | >5.0kg/cm2 |
| Air Consumption | <200L/min. |
| Electrical Control | Research and Develop Independently by ETON |
| Motion Control Card 1 sets | Research and Develop Independently by ETON |
| X,Y Axies Driving | Servo motor |
| Feeding Way | Electronic Feeder |
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment
Faith ful cooperation, win –win future!
Excellent After-sale Service.
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Complete packing, guaranteed with latest product display.
Q:Quality Principle
We stick to quality first, client-oriented, Continuous improvement!
Q: Why choose us ?
We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.
Q: What's the credibility of your brand?
Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: What is your delivery date?
The delivery date is about 15 days after receipt of payment.
