1.What is that?

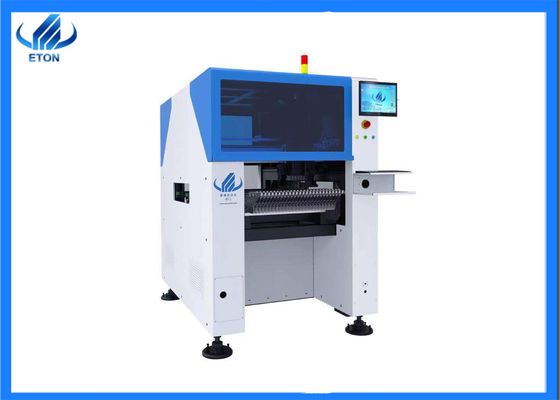

It is full automatic magnetic linear motor multifunctional smt pick and place machine. It is a vital part in SMT line.
A pick and place machine is a machine that attaches many components to a PCB board.It can more accurately place and reduce costs.It can be generally divided into a high-speed machine and a general-purpose machine.
As a basic product of our company, this multi-functional machine has been upgraded and upgraded many times.
2.What is our advantage?
1.Mount small components: MIN.size:0402(length*width:1mm*0.5mm)
2.Wide range of use: It is suitable for LED,electric board, lens, linear bulb,householdAppliance,power driver,etc.
3.High precision: +-0.02mm. 2 sets of imported camera with its features of vision alignment flight identification and Mark correction to solve the problem of throwing materials of previous machines.
4.High technology:Automatic operation, save a lot of manpower and material resources. Exclusive Patent Technology: group to pick and group to mount. High-end magnetic linear motor +servo motor to drive X,Y Axis.
3.Application :
It is suitable for the production of circuit boards for a variety of products, such as mobile phones, computers and other electronic equipment, TV and air conditioners and other household appliances, light bulbs, LED and other lamps…
it can mount capacitor,resistor,IC, shaped components, DOB etc.
4.Technical parameter:
| Model number |
RT-1 |
| Dimension |
1104*1584*1655 |
| PCB size |
50*50---400*350 |
| PCB thickness |
0.1---6 |
| Mounting speed |
30000--35000 CPH |
| Mounting mode |
Group picking and separate placing,
Separate picking and separate placing
|
| CCD resolution |
0.01mm |
| Feeders station |
32 |
| Nozzles |
10 |
| Mounting height |
<=25mm |
| No of camera |
2 sets of imported camera |
| Components space |
0.2mm |
| XYZ axis drive way |
Servo motor |
| Feeding way |
Electric feeder |
5.details:
6.serve SMT line solution:
We have a professional R&D team, we can design the SMT line for you according to your needs, and the customer service 24 hours online to provide you with services without worrying about the time difference. If you have any questions, please call or log on our official website!
7.Certificate:
We have got the certificate of CCC,CE,SIRA...
8.FAQS:
1.What is the power supply?
380AC,50HZ.
2. How long is the warranty? If any problems, how to solve it?
13 months from the date of shipment. If any quality problems within warranty, Suntech will responsible for it, and send new replacements.
3. Do you provide after-sales technical services?
Yes, we do. And we can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
5. Are you a trading company or a factory?
We have the factory and we are committed to the R & D, production, sales and after-sales technical services of SMT high-speed patch.
6. What is the payment method?
L/C or TT.
7. Do you have your own R&D team?
Yes, we can customize products as your requirements.
