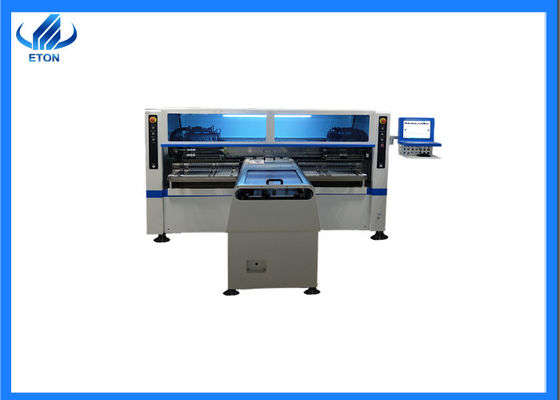

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

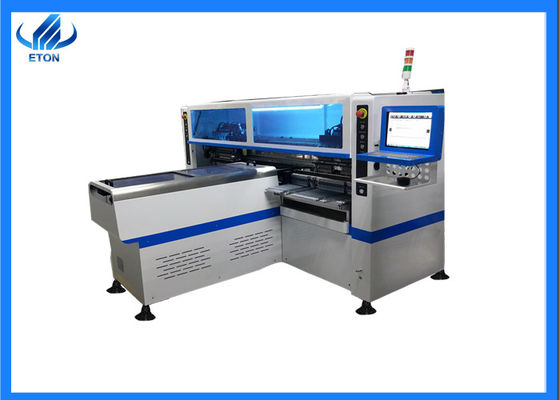

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

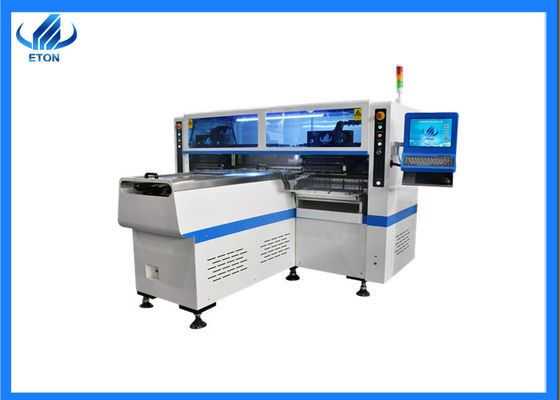

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

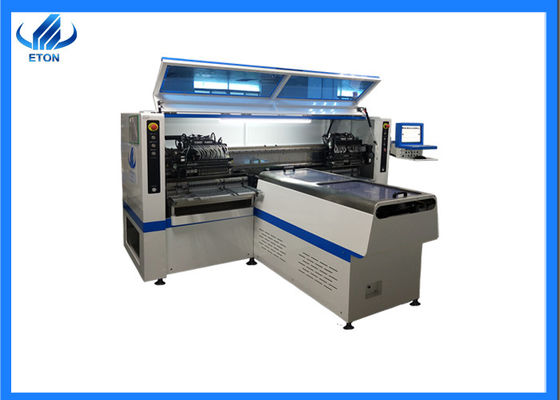

Ampliación de imagen :  pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter

Datos del producto:
Lugar de origen: CHINA
Nombre de la marca: eton
Certificación: ccc,ce,sira
Número de modelo: ht-t9
Documento: Manual del producto PDF
Pago y Envío Términos:
Cantidad de orden mínima: 1 unidad
Precio: $ 95,000 /unit
Detalles de empaquetado: Embalaje material impermeable y caso de madera
Tiempo de entrega: 30 días del trabajo
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 80 unidades por meses
Contacto
Descripción detallada del producto
Tamaño del PWB: longitud 250mm*any abrazadera del PWB; ing: presión ajustable neumática
Sistema: windows7 Software: r&d independientemente
Exhibición: monitor de la pantalla táctil dispositivo de entrada: teclado, ratón
No de la cámara: 5 Poder: 380AC 50HZ
consmption del poder: 6kw modo del montaje: Grupo de grupo de palillo
Espacio de los componentes: 0.2m m estaciones de los alimentadores: 64PCS
Bocas: 64PCS Velocidad del montaje: 200000CPH
Altura del montaje: 13m m

1.product details



Components: LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers,etc.

Application:5m,50m or any length of flexible strip and roll to roll;RGB

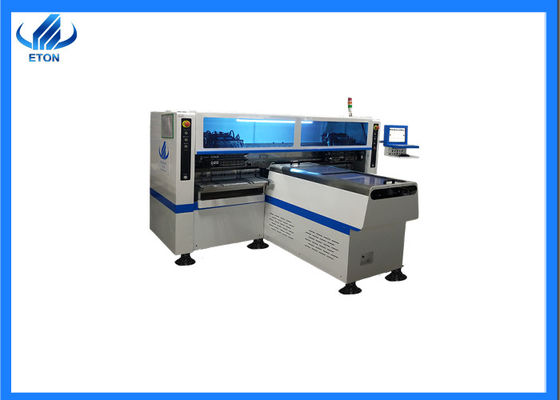

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 0





2.product Technical parameters​  of high speed pick and place machine

Model number HT-X9
Dimension 2450*2100*1550mm
PCB size 250mm*any length
PCB thickness 0.5～1.5mm
PCB clamping adjustable pressure pneumatic
mounting mode group to take and group to mount
system windows 7
display touch screen monitor
input device keyboard,mouse
NO.of camera 5 sets of imported camera
mounting precision ±0.02mm
mounting height <13mm
mounting speed 200000CPH
components space 0.2mm
NO.of feedings station 64pcs
NO.of nozzles 64pcs
power 380AC 50HZ
power consumption 6KW
operating environment 23℃±3℃
conveyor transmission any length
transmission speed >500mm/sec
transmission direction single(left→right,right→left)
transmission mode online drive
position mode optical
Air Force 0.5mpa
electrical control independent research and development by ETON
motion control card module 1set independent research and development by ETON
X.Y axis drive way high-end magnetic linear motor+servo motor
feeding way electric feeder with double motor


pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 1





 2.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • Install 5 camera and adopt vision for the flight identification, mark correction.
  • PCB clamping is electric clamping+adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 2




3.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 3






4.Company profile

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 4

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 5



pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 6



pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 7


5.Our  Our certificates and certifications

pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 8



6.our services
pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 9



7. trade show


pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 10







pick and place machine for led light,smt pick and place ,automatic mounter,magnetic linear motor high speed mounter 11














  • PCB
  • PCB printed circuit board, also known as printed circuit board, is an important electronic component, is the support of electronic components, is the carrier of electrical connection of electronic components. Almost every kind of electronic device has electronic components such as integrated circuits, so as to make the electrical interconnection between the components, it is suitable for printing. The printed circuit board has the dual function of conducting circuit and insulating floor.
  • Classification: according to the number of circuit board layers can be divided into single panel, double panel, four-layer board, six-layer board and other multi-layer circuit board.

(1) Single panel: On the most basic PCB, the parts are concentrated on one side and the wires on the other side. because the wire only appears on one side.

(2) Double panel: This circuit board has wiring on both sides, but to use the wire on both sides, it is necessary to have a proper circuit connection between the two sides. A "bridge" between these circuits is called a guide hole (via). A guide hole is a small hole filled or coated with metal on a PCB, which can be connected to a wire on both sides.

(3) Multi-layer board: In order to increase the area that can be wired, the multilayer board uses more single or double-sided wiring boards. A printed circuit board with one double-sided inner layer, two single-sided outer layer or two double-sided printed circuit boards with two single-sided printed circuit boards with one side as inner layer and two single-sided printed circuit boards with one side as outer layer.

  • Advantages: simplify the assembly and welding of electronic products, reduce the connection workload under the traditional mode, greatly reduce the labor strength of workers; reduce the volume of the whole machine, reduce the cost of products, improve the quality and reliability of electronic equipment; adopt standardized design, which is conducive to mechanization and automation in the production process; the whole assembly and commissioning PCB can be used as an independent spare part to facilitate the exchange and maintenance of the whole machine products.
