smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Ampliación de imagen :  smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor

Datos del producto:
Lugar de origen: CHINA
Nombre de la marca: eton
Certificación: ccc,ce,sira
Número de modelo: RT-1
Documento: Manual del producto PDF
Pago y Envío Términos:
Cantidad de orden mínima: 1 unidad
Precio: $33,000.00/unit
Detalles de empaquetado: Embalaje material impermeable y caso de madera
Tiempo de entrega: 30 días del trabajo
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 80 unidades por meses
Descripción detallada del producto
Tamaño del PWB: 50 * 50 mm ~ 350 * 400 mm abrazadera del PWB; ing: presión ajustable neumática
Sistema: windows7 Software: r&d independientemente
Exhibición: monitor de la pantalla táctil dispositivo de entrada: teclado, ratón
No de la cámara: 2 Poder: 380AC 50HZ
consmption del poder: 6kw modo del montaje: Agrupe el palillo del centavo de la toma, palillo del centavo de la toma del centavo
Espacio de los componentes: 0.2m m estaciones de los alimentadores: 32pcs
Bocas: 10pcs Velocidad del montaje: 30000CPH~35000CPH
Altura del montaje: 40m m

1.product details

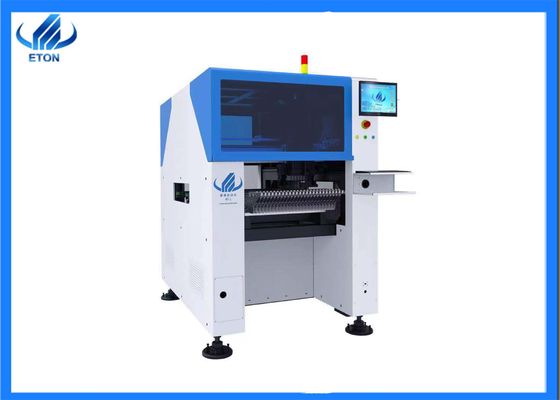

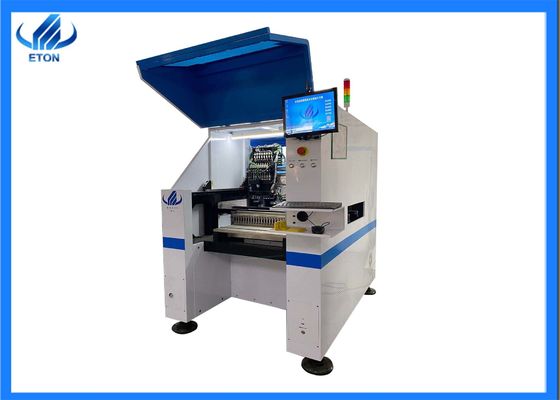

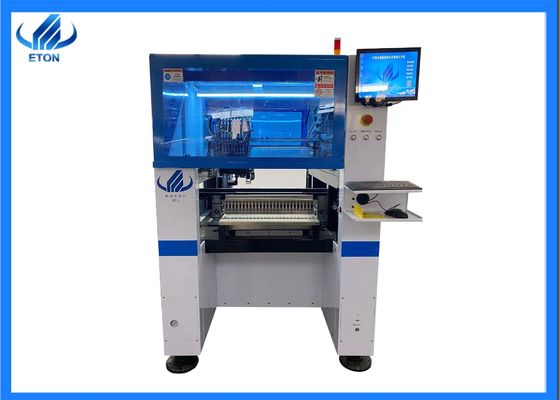

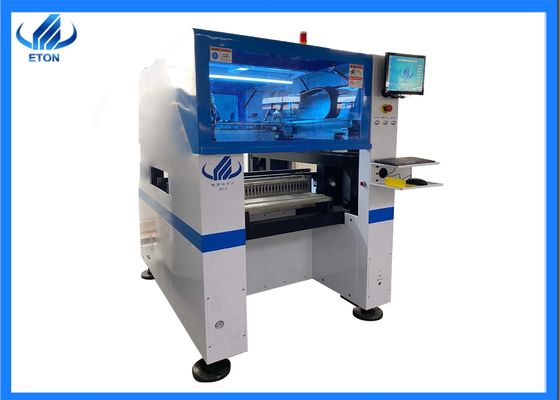

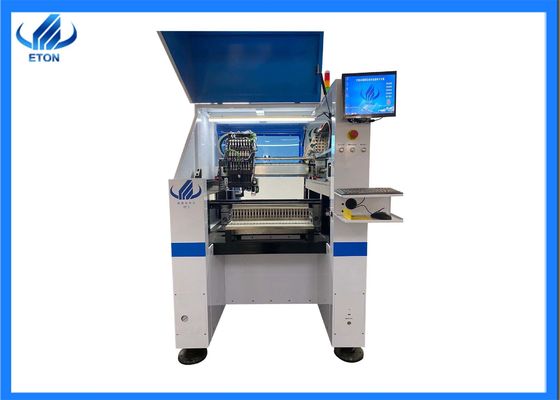

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH~35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.



smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 0





2.product Technical parameters​  of high speed pick and place machine



Place of origin Guangdong,China
Model number RT-1
dimension 1104*1584*1655
PCB size 50*50~400*350
PCB thickness 0.1~6mm
Mounting speed 30000~35000CPH
Mounting mode Group picking and separate placing, separate picking and separate placing.
Mounting precision ±0.02cm
Feeder stations 32pcs
nozzles 10pcs
Mounting height 40mm
No.of camera 2 sets of imported camera

smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 1






 3.product features of smt pick and place machine

  • X,Y,Z drive way is high-end magnetic linear motor+servo motor.
  • PCB clamping is adjustable pressure pneumatic.
  • Vision for the flight identification ,mark correction.
  • Electronic feeder feeding system.
  • Non-stop material re-loading function.
  • Auto-optimization after coordinates generated.

smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 2



4.Packing & shipping of smt mounter machine


Packaging materials Waterproof material and wooden case
Lead time Delivery within 30 days after receipt of payment..
port Shenzhen
Delivery time Transshipment and partial shipment according to the contract


smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 3






5.Company profile

smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 4

smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 5



smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 6


smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 7


6.Our  Our certificates and certifications

smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 8


7.our services
smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 9

8. trade show


smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 10







smd mounting machine multifanctional pick and place mounter,smt pick and place ,automatic mounter,magnetic linear motor 11












  • SIRA certification

SIRA Test &Certification LTD.( Serry) was founded in 1918 AD, has a history of nearly 100 years, branches throughout the world. Serry is one of the few authorities with explosion-proof certification (ATEX), instrument calibration, inspection and testing, personnel training and management system certification, UKAS approval number 11. Ceri has advanced testing methods and extensive experience in certification, and has cooperated with relevant institutions in more than 30 countries. Seri China headquarters has been approved by the China National Accreditation and Accreditation Regulatory Commission, approval number: CNCA-RF-2003-29.

Shanghai Serui Quality Certification Co., Ltd. has been approved by the China conformity Assessment Commission (CNAS) at present, the approval number is: CNAS-C142, approval scope is: quality management system, construction field quality management system, environmental management system, occupational health and safety management system. Shanghai Serry is also the UK's "SIRA Certification Service" quality management system, environmental management system key sub-site, the key sub-site has UKAS recognized. Shanghai Serui Quality Certification Co., Ltd. has currently set up two branches in the country: Shenzhen Branch and Hangzhou Branch, mainly responsible for business promotion activities.

Seri certification values: professional: with deep expertise, the world of good work;

Integrity: with the concept of integrity, credit reputation;

Improvement: to improve thinking, to create standards pioneer.
